Pheilix Integrated Energy Solutions: Powering the Future with Innovation
Executive Summary
Pheilix Technology redefines energy infrastructure with its all-in-one transformer station and Power Conversion System (PCS) solutions. Combining high-efficiency power conversion, modular scalability, and advanced grid-support capabilities, our systems deliver unmatched reliability for utility-scale, commercial, and industrial applications. From peak shaving to black-start readiness, Pheilix enables smarter, safer, and more sustainable energy management.
Core Product Highlights

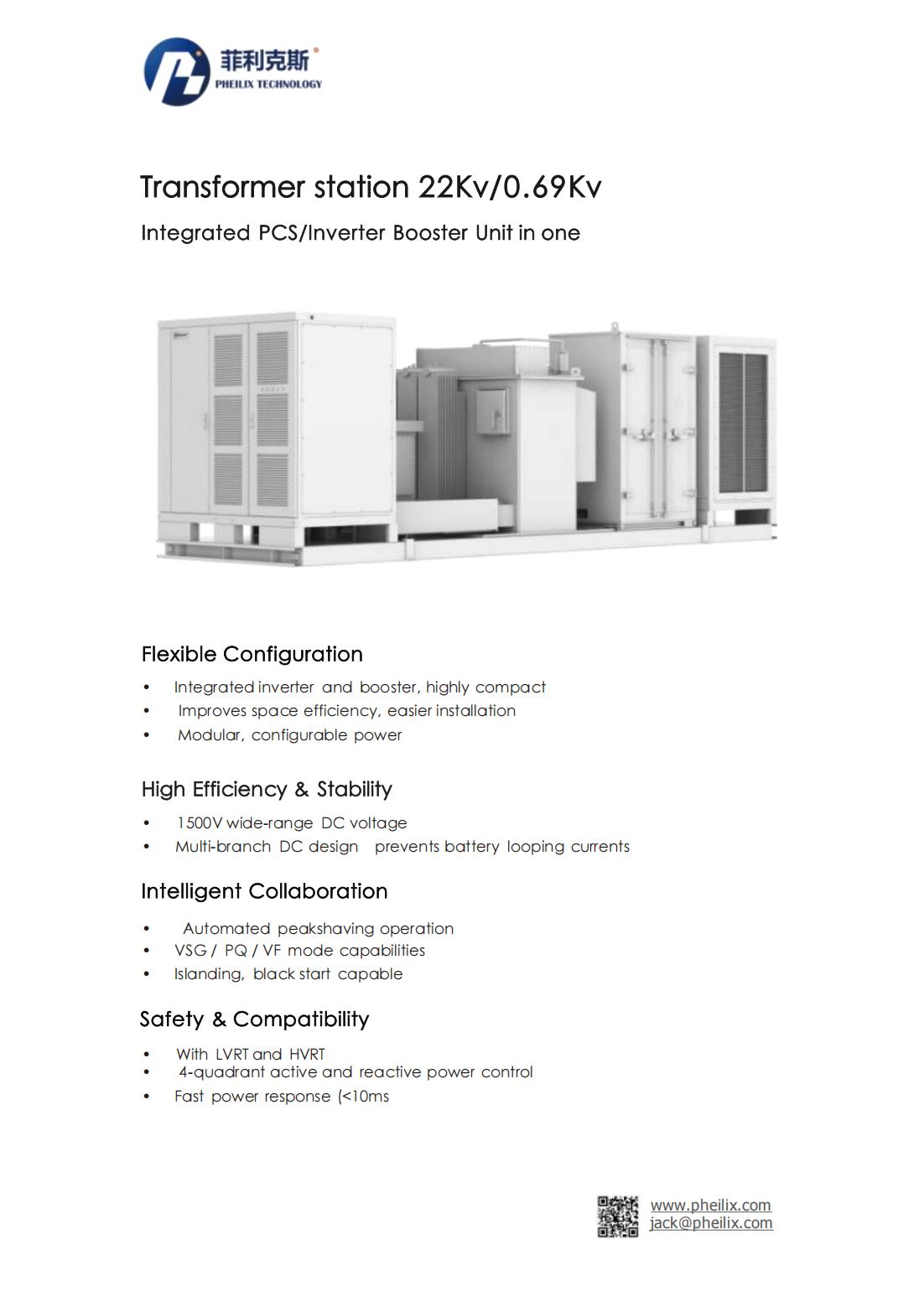

1. Transformer Station + PCS Integrated Solution (SES3-342-MV-EX-Skid)
- Ultra-Compact Design:
- Integrates 22kV/0.69kV transformer, PCS, and booster in a single skid (IP54/C4 corrosion resistance).
- Saves 30% space vs. traditional setups.
- Grid Resilience:
- LVRT/HVRT compliance, 4-quadrant reactive power control, and <10ms grid response.
- VSG/PQ/VF modes + black-start capability for microgrid stability.

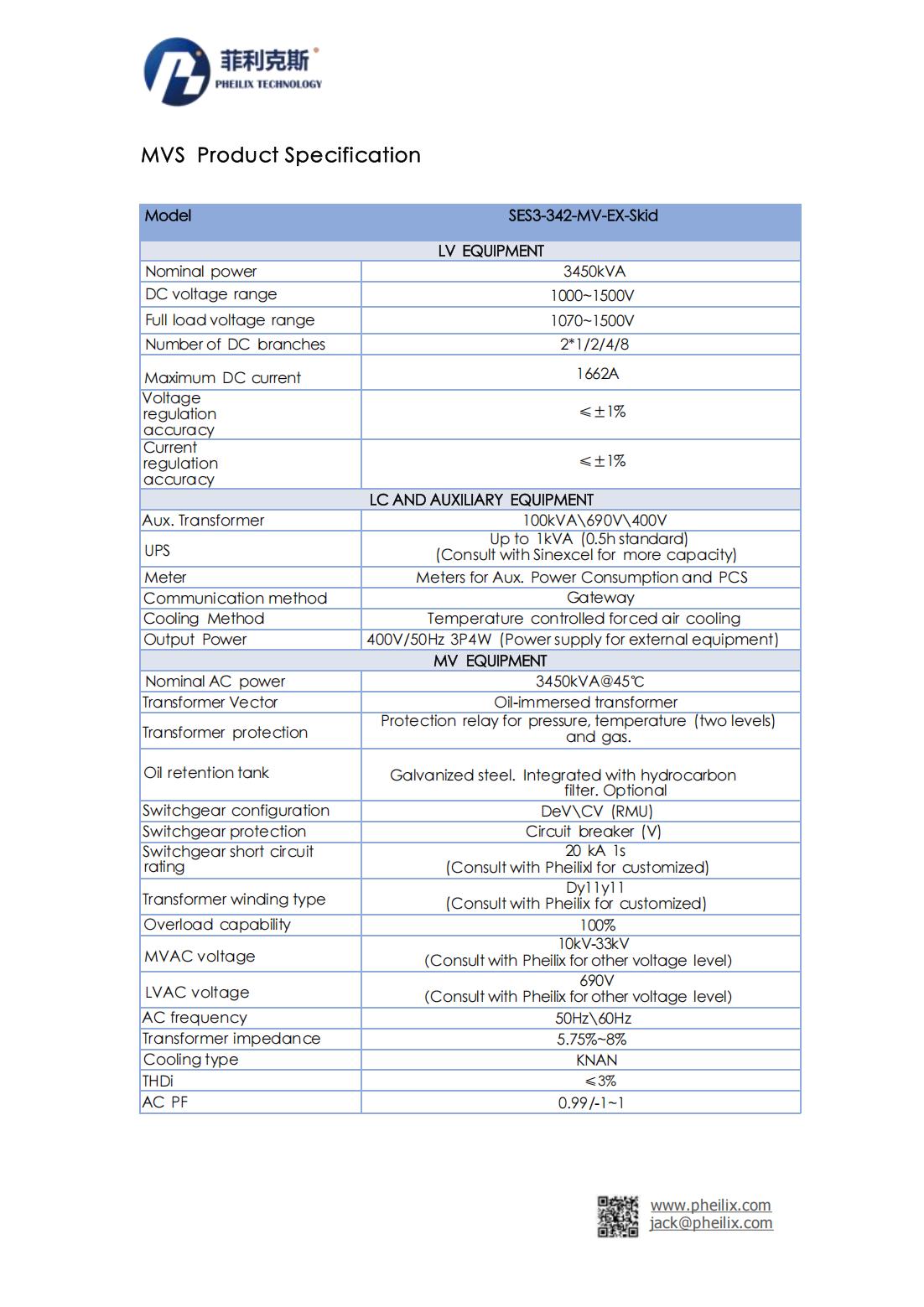

- Key Specs:
- Power: 3,450kVA (MV) / 3,450kVA (LV).
- Voltage: 10–33kV (MV), 690V (LV).
- Efficiency: <3% THDi, 0.99 power factor.

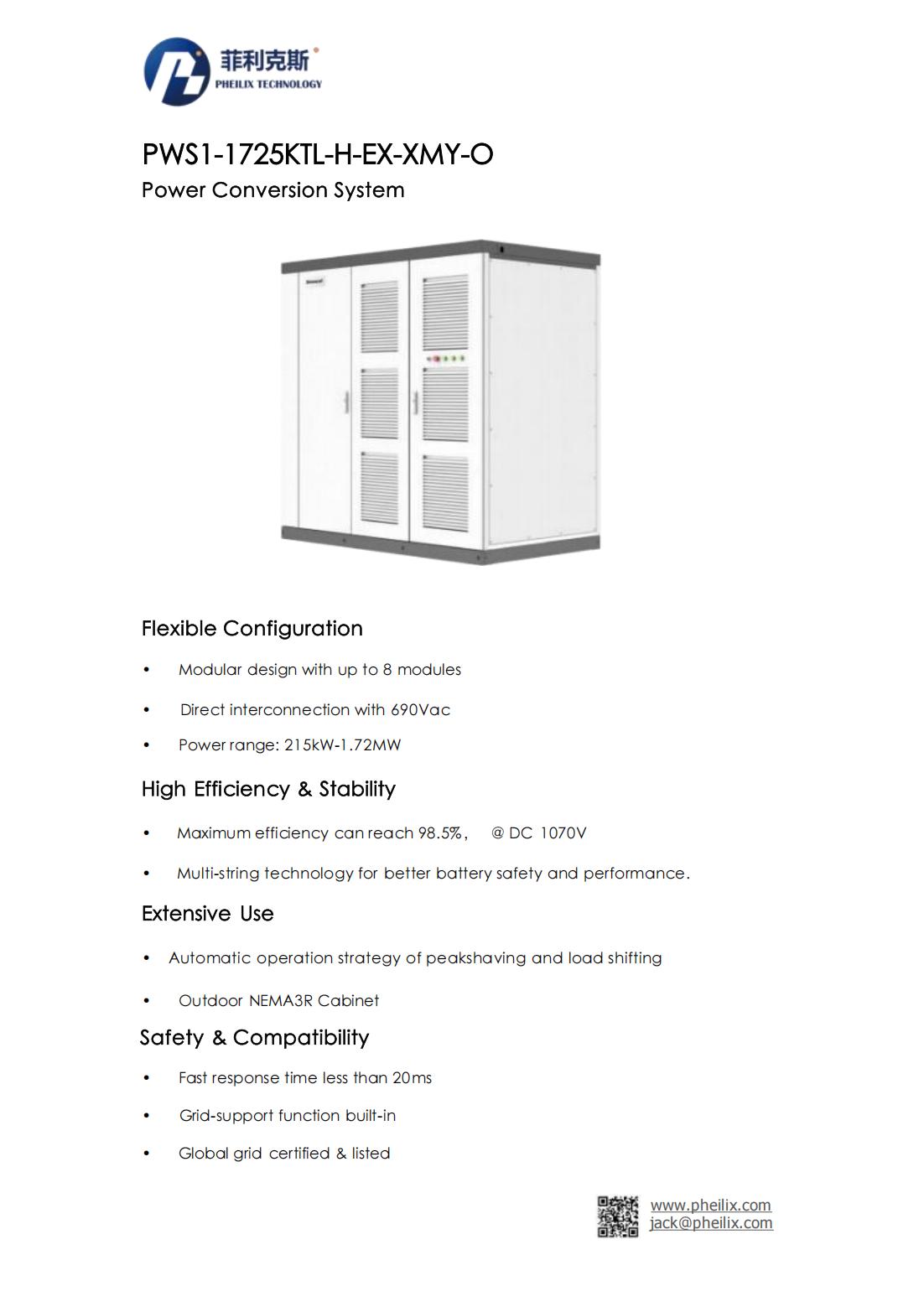

2. Modular PCS Systems (PWS1-1725KTL Series)
- Flexible Power Scaling:
- 215kVA–1,725kVA output via 1–8 hot-swappable modules.
- 3 variants (XM1/XM4/XM8) with 1/4/8 DC branches for battery safety.
- Peak Performance:
- 98.5% efficiency (DC 1,070V), wide voltage range (1,000–1,500V).
- <3% THDi, ±1% voltage/current regulation.
- Rugged & Smart:
- NEMA3R/IP54 outdoor-rated.
- Supports Modbus, IEC 61850, and peak-shaving automation.

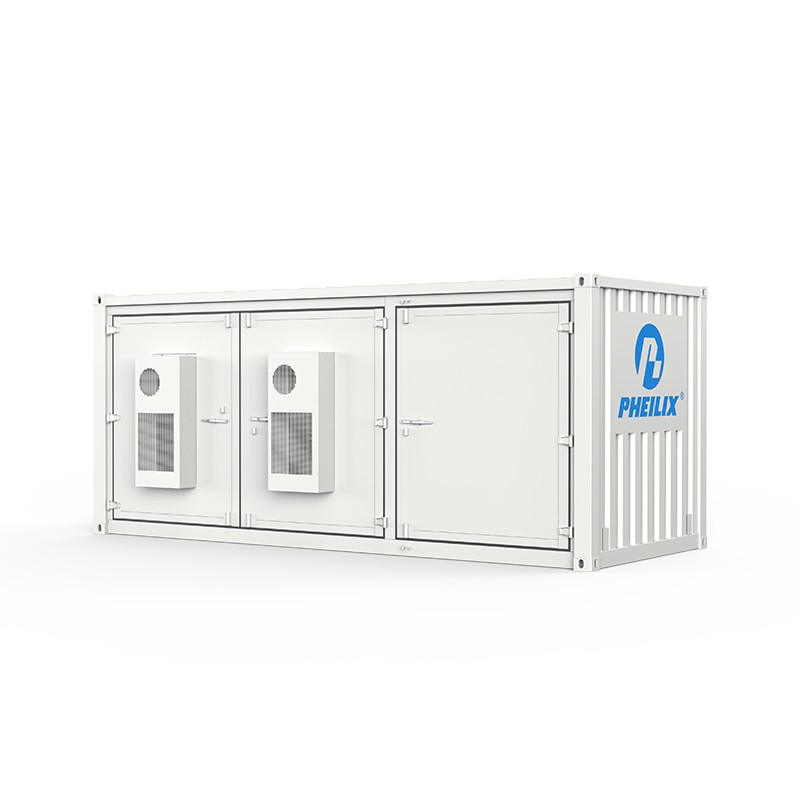

3. Containerized ESS (2.2MWh)
- Turnkey Energy Storage:
- 2.236MWh capacity in a 20ft liquid-cooled container.
- 6 clusters (280Ah LiFePO₄ cells, 1P416S configuration).
- Safety & Longevity:
- Cell-to-system monitoring, 0.5C charge/discharge (140A).
- Operating range: -20°C to 60°C (discharge).

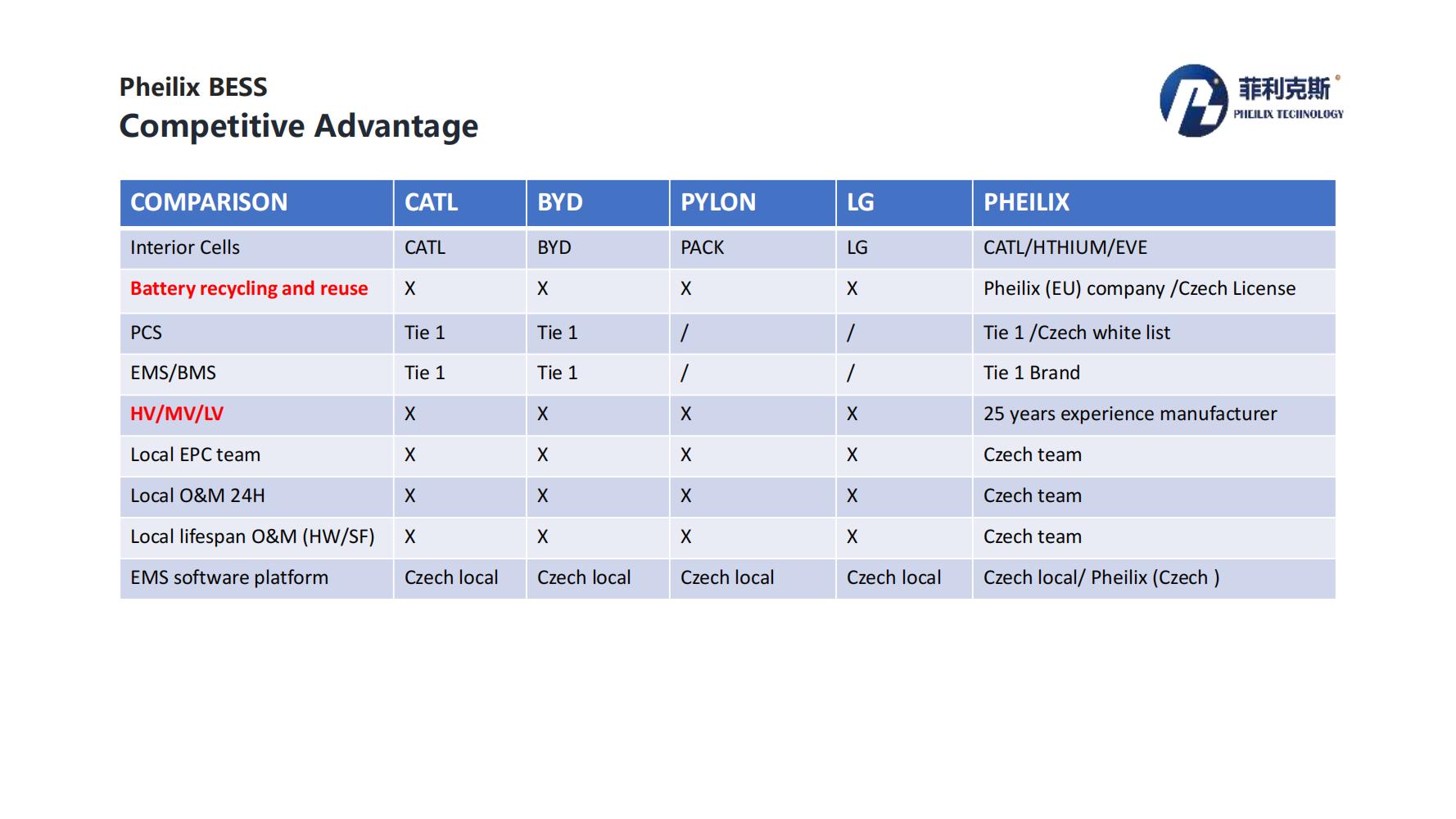

Competitive Edge
- Speed to Market:
Pre-engineered skids reduce installation time by 40%. - Future-Proof:
Multi-branch DC design prevents battery looping; global grid certifications (IEC 62477, G99, VDE 4120). - OPEX Savings:
98.5% PCS efficiency cuts energy losses; automated peak shaving slashes demand charges.
Target Applications
- Renewable Integration:
Smooth solar/wind fluctuations with VSG mode and <20ms response. - Grid Support:
Provide reactive power compensation and fault ride-through (LVRT/HVRT). - Commercial/Industrial:
Peak shaving, load shifting, and backup power (black start enabled). - Remote Sites:
Containerized ESS operates at -30°C to 55°C and 3,000m altitude.
Call to Action
Deploy Smarter Energy Infrastructure Today!
- Contact Jack at jack@pheilix.com
- Explore specs: www.pheilix.com
- Request a customized quote: Share your voltage, power, and site requirements for a tailored solution.
Pheilix Technology – Engineering Energy Resilience
Certified | Efficient | Scalable - Ultra-Compact Design:
-

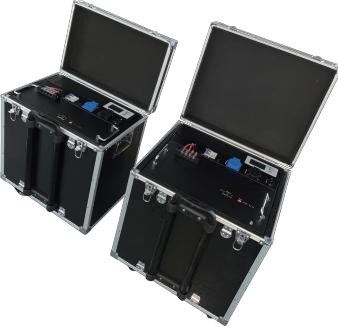

Pheilix Tech 48V Intelligent Li-ion System – Mobile Energy Revolution for Critical Operations
Flexible Deployment | Industrial-Grade Reliability | Smart Parallel Connection | Simplified Maintenance
Core Value
“All-in-One Power Station • Zero-Interruption Power Transfer”
Industrial-grade mobile power solution designed for telecom infrastructure and emergency scenarios. Integrates LiFePO₄ battery systems with intelligent charge/discharge management, delivering stable 48V DC power in a portable “modular power cube” – liberating energy from fixed equipment rooms.
Breakthrough Advantages
✅ Military-Grade Power Core
▸ High-density LiFePO₄ cells (-20℃~60℃ operating range)
▸ Dual models: 2.56kWh / 5.12kWh capacity (≈8-24hr backup for small基站)
▸ 2000+ cycles | IP20 ruggedized enclosure✅ AI-Driven Power Management
▶ Triple-protection BMS: Real-time voltage/current/temperature monitoring
▶ Innovative two-stage low-voltage cutoff: Automatically disconnects load at critical voltage, extending battery life by 40%
▶ 98% charge efficiency + 96% conversion efficiency – industry-leading energy utilization✅ Effortless Industrial Deployment
» Rack-mountable design (502×438×510mm) | Supports multi-unit smart parallel expansion
» Dual 220VAC outputs (16A max) + 48VDC direct connectivity
» Wheeled suitcase design | 75kg lightweight | Deploy instantly at field sites
Key Applications
Emergency Backup
Seamless power transfer during grid failure for 5G/transmission equipmentOn-Demand Capacity Boost
Temporary power for remote sites | Event power extension | Data center migrationSmart Remote Monitoring
RS485/RS232 communication for real-time voltage/temperature/capacity data
Technical Highlights
Capability 4850-3KW Model 48100-6KW Model Rapid Charge/Discharge 50A max current 100A max current Extreme Cold Resilience Storage at -25℃ Storage at -25℃ Space Efficiency 0.5㎡ footprint 0.7㎡ footprint
The Pheilix Promise
“Where traditional power solutions are bound by gravity, we engineer mobility into energy –
No more emergency generator trucks. No more business downtime during capacity upgrades.
Delivering every joule of energy precisely where needed.”
Pheilix Technology
Powering Tomorrow • Connecting PossibilitiesContact our power solutions specialists for customized proposals
-
Pheilix ESS C&I Energy Storage Solutions: Efficient · Reliable · Full-Scenario Coverage
Empowering Business Energy Transition, Building a New Smart Energy Ecosystem
Key Application Scenarios
✅ Industrial Energy Management: 500kW containers for off-peak storage + peak production
✅ Commercial Complexes: 200kW air-cooled systems for load shifting + backup power
✅ PV Plant Integration: Liquid-cooled units (e.g., 1MW/2MWh) boosting green energy utilization
✅ Microgrids: Parallel operation for off-grid support, compatible with 690V/20kV MV grid connection
Choosing Pheilix ESS Means Selecting:
✦ High-Density Storage: 3.2V 280Ah/314Ah cells, 15% higher energy density
✦ Simplified O&M: All-in-one design reduces installation costs by 30%
✦ Future-Proof: Scalable to Solar+EMS+BMS+EV Charging ecosystems
Customize Your Storage Solution Today – Power a Sustainable Future!
Specifications based on Pheilix 2025 tech white paper. Final configurations subject to local regulations.
1. Complete Product Range: Flexible Scaling from 100kW to MW-level
Pheilix ESS offers a comprehensive portfolio covering 100kW to 2.5MW power and 215kWh to 5.016MWh capacity, meeting diverse needs from SME peak shaving to large-scale industrial PV-storage integration:
- All-in-One Cabinet Solutions (100kW–200kW):
▶︎ Compact design (footprint ≤3.2㎡), plug-and-play deployment
▶︎ Built-in PCS with AC coupling support
▶︎ Air/liquid-cooling options (e.g., 115kW liquid-cooled for high-temp environments) - Containerized MW-scale Solutions (500kW–2.5MW):
▶︎ 20/30ft standard containers, modular expandability
▶︎ Cluster-ready battery architecture (multi-parallel support)
▶︎ Optional “battery-only + external PCS” configuration (e.g., 2.5MWh pairs with 1250kW PCS)
2. Core Technological Advantages: Dual Assurance of Safety & Performance- Long-Life Battery System
- LFP Chemistry: 8,000 cycles @95% DoD (25°C), ≥70% EOL capacity retention
- 90% Depth of Discharge (DoD), maximizing energy utilization
- Wide DC voltage range (e.g., 672–876V), adaptable to complex conditions
- Industrial-Grade Safety
- Five-Layer Protection: Smoke/temp detection + aerosol fire suppression + alarm strobe + emergency stop
- IP54/IP55 rating (IP55 for containers), dust/water resistant
- Certified to IEC 62619, UN38.3, AS 4777.2, and 20+ global standards
- Smart Management & Compatibility
- Standard 10.1″ industrial touchscreen with RS485/CAN/TCP multi-protocol comms
- Optional EU-local EMS platform ($20k/3 years) for PV+storage+EV charging unified monitoring
- Wide operating range (-25°C~55°C), full performance at ≤2000m altitude
3. Economic Highlights: Your Cost-Efficiency Partner
Model Price (DDU) Cost-Per-KWh Advantage 100kW/215kWh Air-cooled $39,775 Fast ROI for small-scale 1MW/2MWh Liquid-cooled $415,000 Optimal for large projects 5MWh Battery + External PCS Custom (TBA) Ultra-low marginal cost at MW-scale
- All-in-One Cabinet Solutions (100kW–200kW):
-
Pheilix Commercial DC Charging Station – Operational Model (30 kW – 720 kW) Air-Cooled/Liquid-Cooled
Pheilix DC Charging Station: Redefining Ultra-Fast Charging and Ushering in a New Era of Future Mobility
With the penetration rate of new energy vehicles exceeding 30%, charging efficiency and safety have become the core considerations for users when choosing a charging station. Pheilix DC charging stations, with their revolutionary technological breakthroughs, redefine industry standards with three core advantages: ‘liquid cooling ultra-fast charging + c + comprehensive safety protection,’ bringing electric vehicle users an unprecedented ultra-fast charging experience.
Liquid-Cooled Ultra-Charging: A Double Revolution in Efficiency and Safety
Pheilix is equipped with the next-generation liquid-cooled ultra-charging technology, using 3D stacked packaging modules, reducing the volume by 68% compared to traditional solutions and improving heat dissipation efficiency by 300%. Through a liquid circulation system, the temperature of the charging module is stabilised at ≤85℃, enabling continuous output of 1000V high voltage and 400A high current even in extreme high-temperature environments (such as 40℃ outdoors). The peak power of a single gun reaches 480kW, providing megawatt-level charging capacity for electric heavy-duty trucks, electric ships, and other high-capacity batteries. Test data shows that with dual-gun simultaneous charging mode, heavy-duty truck batteries can be charged from 20% to 80% in just 35 minutes, achieving four times the efficiency of traditional air-cooled charging stations.
Product Features
Elegant Design
•All aluminum Z-shaped shutter patented technology
•Clear display of SOC status
•Sunshade protection, cold light
Intelligent Control
•Online status diagnosis
•OTA remote upgrade
•4G Connection Ø OCPP1.6J
Strong Performance
•Equal power distribution between 2 connectors
•Wide constant charging power range 300V~1000V
•Low standby power consumption
•Charging efficiency up to 95%
Intelligent temperature control: optimal adaptation to all climate conditions
To address extreme environmental challenges, Pheilix has innovatively integrated a -40°C to +75°C wide-range temperature control system, featuring high-precision temperature sensors and AI algorithms that can real-time detect ambient temperature and dynamically adjust cooling strategies. In northern winters (-20°C), the charging station ensures rapid battery response through preheating functionality. In southern regions with high humidity (95%), its IP54 protection rating and maze-like waterproof design withstand heavy rain. Additionally, the intelligent temperature control module includes overheating protection, automatically triggering a shutdown alarm when switch component temperatures reach ≥85°C to prevent component damage.
Comprehensive safety protection: Five layers of protection from hardware to software
Pheilix builds a comprehensive safety system through hardware redundancy design + software intelligent monitoring:
- Hardware Layer: Utilises industrial-grade components, equipped with dual leakage protection (AC 30mA/DC 6mA), overvoltage/undervoltage protection (input voltage range 304V-456V), short-circuit protection (fault response time <100ms), and lightning protection (compliant with GB 50057-2010 standards);
- Software layer: Equipped with a BMS abnormal interruption function, which immediately stops charging when a battery fault is detected and uploads fault data to the cloud in real time via a dual-mode communication protocol (supporting Modbus-RTU and DL/T 645-2007);
- Mechanical layer: The charging gun is equipped with an electronic locking device, which automatically cuts off power when not reliably locked to prevent accidental disconnection;
- Environmental Layer: Built-in water immersion detection and smoke detection devices automatically cut off power in emergency situations;
- Certification Layer: Certified by UL, CE, CCC, and other international standards to ensure global market compliance.
Smart Operations and Maintenance: From Passive Response to Proactive Prevention
Pheilix supports OTA remote upgrades, enabling one-click updates of communication protocols and control modes via the monitoring and maintenance platform to adapt to new national standards such as the ChaoJi charging standard. Its DJSF1352-D300 smart metering module features a pre-diagnostic system that can warn of metering deviations 72 hours in advance and automatically perform zero-point calibration every 15 minutes through a dynamic calibration mechanism to ensure an error rate of ≤0.3% under all operating conditions. In addition, the device is equipped with data recording and upload functions that can store offline data locally and support power failure recovery transmission, with an MTBF (mean time between failures) of ≥80,000 hours.
Scenario-based applications: Comprehensive coverage from urban areas to remote regions
- Urban charging network: In scenarios such as communities and commercial complexes, Pheilix uses intelligent flexible charging stacks technology, with each stack capable of connecting up to 20 charging guns, supporting simultaneous charging of multiple vehicles, and achieving a maximum efficiency of 97.5%;
- Tourism and Transportation Networks: For tourist attractions and highway service areas, charging stations are equipped with flexible charging strategies that adaptively adjust output power to avoid grid impact;
- Emergency Response Scenarios: During power outages, Pheilix can collaborate with energy management units and energy storage systems to provide V2G (vehicle-to-grid) emergency power supply.
Choosing Pheilix is not just choosing a charging station; it’s choosing a future lifestyle for mobility.
Driven by technological innovation to transform the industry and committed to ensuring safety in every journey, Pheilix is dedicated to collaborating with global partners to build a green, efficient, and sustainable smart energy ecosystem.
Experience Pheilix DC charging stations today and let every kilowatt-hour become a force for change!
-
Zero carbon system involves product
Smart EV Charging Solutions Pheilix offers a range of smart EV chargers designed for both residential and commercial use. Our chargers are equipped with advanced features like OCPP1.6 compatibility, app monitoring, and dynamic load balancing to ensure efficient and reliable charging experiences. OCPP1.6 Platform Integration Our OCPP1.6 platform is a robust solution for managing EV charging stations globally. It supports seamless integration with various EV chargers, providing real-tim... -
OCPP1.6 Json Platform & App System
The “Pheilix Smart” OCPP1.6/2.0Json Cloud Platform and APP system was designed and up-grated by our own engineering team . Designed for both Commercial and Residential users, The “Pheilix Smart” OCPP1.6 Cloud Platform system provides a unique service to each user and/or client dependent on the application giving us the ability to deliver the necessary requirements.
Our platform allows for Live monitoring of Charge Points network, including charging sessions, socket activity, driver groups, tariffs, and billing configuration. The “Pheilix Smart” Ocpp platform can divided into unlimited independent sub-accounts. It make available for us to provide unlimited accounts for our customers. Each client can manage their own EV charging points on the platform.
“Pheilix Smart” App system is a public App system, which designed with 149 different languages and an independent web management account system also. This is also with unlimited sub-accounts functionality. Each operator customer can manage their customers and charging activities via App management account. The “Pheilix Smart “ App system allowed each operator setting their own company “logo” and “ advertisement “ on the App system. This means the customers have their own App system .
-
The True Solar + Energy Storage + EV Charger All-in-one System
With the professional technologies and decads years accumulations of experience in solar , Energy storage and EV chargers , Pheilix Technology is not only a products supplier for EV chargers , Battery ( Engergy storage ), Solar system But also a Platform and App software system sevice Global leasing servie supplier.
Phelix technology provides a true “ solar + Battery + EV charger” all-in one solution both for Residential system and Comemrcial system.
In the currently residential system, The current solution on the market for Solar, Battery and EV charging system use a CT to monitor the current flow direction. From this, we cannot gain any detail of how much power is used instantly from the Home loads or how much is produced instanatly from Solar or Battery. To enable maximum use of Green Energy, we must first establish exactly how much is green power at this minute or second and how much of the current necessary loads required . So, whenever the EV charger is being used whether that be day or night, we must ensure the necessary Home Loads working first, The balance from the instant solar power or the battery storage is used for EV charging.
-
European EV charge point certified by CE and TUV
The OCPP1.6J management platform CE/TUV approved Commercial use EV Charger is designed for commercial use and is capable of charging electric vehicles with a maximum power output of 3.6 kW to 22 kW, depending on the model you choose. The charger is equipped with a single Type 2 Gun/socket, which is a popular type of connector used in Europe for electric vehicle charging.
-
DLB function of european ev charge point
The DLB function ensures that the available power across the EV charging point is automatically balanced, making sure that each vehicle gets a consistent and stable power supply. This means that even if two electric vehicles are charging simultaneously, the charging rate will not be affected, and the charging process will continue smoothly.
The Commercial use EV Charging station 2x22kw dual Guns/sockets is based on the OCPP1.6J open communication protocol. This protocol allows for secure and reliable communication between the charging station and the back-end management system. This means that users can remotely monitor and manage the charging points, check charging status and progress, and view and export charging records. Additionally, they can access real-time alerts and notifications, ensuring that any issues are quickly detected and resolved.
-
EU Standard EV Charge Point HomeSmart Wall Box 3.6kw,7.2Kw , 11Kw , 22kw
The Pheilix WallBox:EV HomeSmart is a smart charging wall unit which has been designed to provide the user with a simple, interactive EV charging solution for the home.This Smart system offers the EV driver full visibility and control over their EV charging activity. The EV driver can access their charge point via the app and gain access to remote switching as well as full analyitics of their charging session, including kWh consumption, electric miles, savings on CO2 emissions and even cost benefits against their previous petrol/diesel vehicle.
The EV driver can control the charging activity of their EV Chaging Point using their mobile phone or any other web enabled device, allowing them to monitor/record all their charging activity, data and history. Available with a Type 2, Mode 3 charging socket or tethered cable leads offering 3.6kw, 7.2kw, 11kw, 22kw charging speed.
